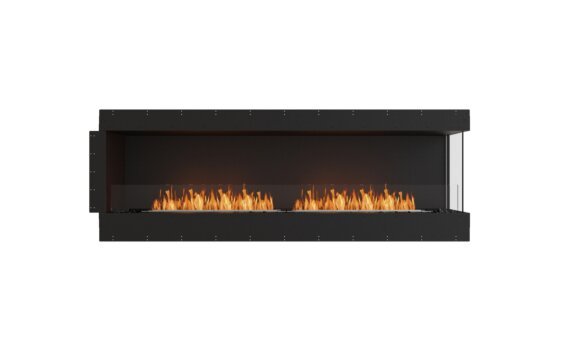

Flex 86RC Right Corner Fireplace Insert

Starts at $10,995.00

Upgrade any corner, and warm up your space with class.

Designed for single room installation, the Right Corner Fireplace Insert features two open sides. The transparent glass on the right corner enables the flame to be viewed from the front and the right corner, providing interior designers, homeowners, architects and builders with the freedom to customise their fire solution to suit a floor plan.

The clean lines and 'all flame' configuration of the Flex 86RC means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 Burners. With an overall heating capacity of 1292ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.

O-TL Listed in accordance with UL 1370.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner Low Stock: 3 days
Ethanol  - Studio Image by EcoSmart Fire

Select Burner Colour*

Stainless Steel Low Stock: 3 days
Stainless Steel  - Studio Image by EcoSmart Fire
Black In Transit: 30 days + $1,000.00
Black  - Studio Image by EcoSmart Fire

Included Accessories

  • Lighting Rod
  • Jerry Can 1.25 Gal
  • Bottle Adapter
  • XL Baffles
  • Black Glass Charcoal
  • Fire Lighter

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Fuel Bioethanol Fuel - Studio Image by EcoSmart Fire
e-NRG Bioethanol In Stock: Ready to ship From $119.00
  • 4 Gal. 1 carton +$119.00
  • 8 Gal. 2 cartons +$233.00
  • 16 Gal. 4 cartons +$452.00
  • 20 Gal. 5 cartons +$550.00
  • 40 Gal. 10 cartons +$1,012.00
  • 80 Gal. 20 cartons +$1,666.00
*Quantities of 4, 8, 16 and 20 Gallons ship on quart-sized bottles.

Order Summary

$10,995.00 Taxes may apply* Tax Information
Free Shipping Standard Delivery*
Continental USA
Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Taxes will be calculated at the checkout. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

EcoSmart 50RC Lane_Cover AU 1_1.jpg Open Gallery
@dieppedesign / @lukebutterly
EcoSmart 50RC Lane_Cover AU.jpg Open Gallery
@dieppedesign / @lukebutterly
EcoSmart FLEX104RC.BXL living_area.jpg Open Gallery
Digital Render

Key Features

Application

Indoor or outdoor single room application. With two open sides, view the flame from the right and the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind screen

Included integrated windscreen sits flush behind frame.

Tested world wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.

Technical Specifications

Construction

  • Weight 268lb [122kg]
  • Model Dimensions in [mm] W 91.8in [2331mm] D 14.4in [365mm] H 31.8in [807mm]
  • Viewing Area in [mm] W 87.8in [2231mm] D 13.4in [340mm] H 19.8in [502mm]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
2.4 Gal
9 L
Heats on Average
646ft2
60m2
Minimal Room
3885ft3
110m3
Thermal Output
15000 BTU/h
4.4 kW 16 MJ/h
Burn Time
8-13h
2.4 Gallons
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

Product Reviews

FAQ's

View All

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.

Are ethanol fireplace inserts difficult to install?

Unlike gas fireplaces or traditional wood burning fireplaces, our ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. They are simply mounted into the constructed main wall framework with the appropriate opening size for the fireplace insert selected. EcoSmart Fire’s ethanol fireplace inserts are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact us.

How long will my ethanol fireplace burn?

Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.
