Proper wall mounting ensures your Motion Electric Fireplace performs safely and looks its best. This guide walks you through each stage of the installation process, from selecting a suitable location and securing the bracket to studs, through to final stability checks. It’s written for installers and homeowners who want a confident, code-compliant result.
Due to the different materials used on different walls, it is highly recommended for you to consult with your local builder before you install this electric fireplace.
NOTE: Use a dedicated 20 Amp (or higher), 2-pole (for 10,000 BTUs) circuit breaker.
1. Select a location that is not prone to moisture and is located at least 36” (914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
2. Have two people hold the appliance against the wall to determine the final location.
3. Place the unit down on a soft, non-abrasive surface.
4. Remove the wall bracket from the back of the unit by removing the screws (Fig. 4-1). Set screws aside. For best results, keep the side skirts installed onto the fireplace.

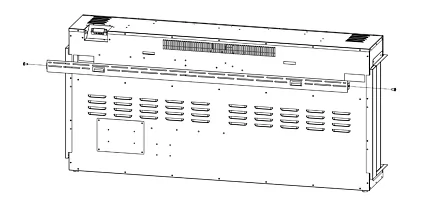

Fig.4-1
5. After you have selected a suitable location for wall mounting, locate the studs on the wall. You must be able to secure to a minimum of 2 studs for proper installation of the bracket.
FAILURE TO DO SO CAN RESULT IN PERSONAL INJURY AND/OR DAMAGE TO EQUIPMENT.
6. Using the wall bracket as a guide, mark the mounting hole locations.
7. This bracket MUST have the hooks facing upward and be level (Fig. 4-2).
8. Additional support is provided by using the included wall anchors (B) between the studs.
9. Additional wall anchors must be installed prior to the wall bracket being mounted.
i. To install additional wall anchors, pre-drill (optional) all locations with a 1/8” drill bit.
ii. Install the wall anchors with a Philips tip screwdriver.
10. Install the wall bracket to the studs using #8 – 1-5/8” (A) screws and to the wall anchors with a #8 – 1” screws (C).

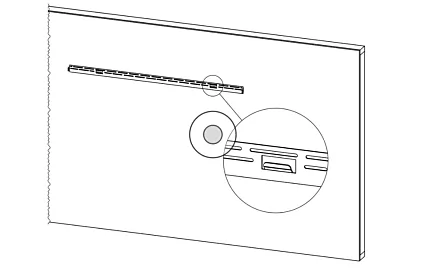

Fig.4-2
11. With the wall mounting bracket installed, have two people lift the appliance up and insert the two hooks of the wall bracket into the two receiver slots on the back of the appliance (Fig. 4-3).
12. Re-insert the two wall mount bracket screws that were removed previously.
13. Check the appliance for stability ensuring the bracket will not pull free from the wall.
14. Wall Mount Cabinet Suite (sold separately) may now be installed.

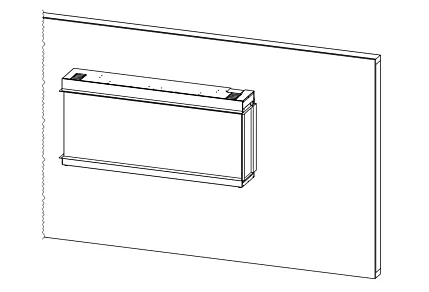

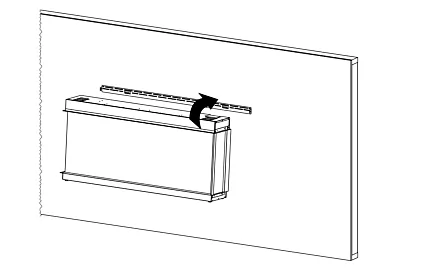

Fig.4-3
