When using Bioethanol as a fuel source these models are suitable for indoor and outdoor use.

Before installation ensure that the model is positioned in accordance with the compulsory minimum clearances outlined below.

Minimum Room Size

If used indoors ensure that you pay attention to the Minimum Room Sizes below:

Sidecar 24Chaser 38Base SeriesArk 40Mojito 40Vertigo SeriesManhattan 50Martini 50Mix 850Nova 850Pod SeriesPod Series1x AB8/AB8(EN)116 m3 [4,096 ft3]
Mix 600Nova 600Nova 6001x AB340 m3 [1,413 ft3]
Cosmo 50Wharf 65Daiquiri 70Daiquiri 701x XL900110 m3 [3,884 ft3]

Clearances

WARNING: Ensure that your fire is positioned away from flammable materials and other sources of ignition at all times. Pay very close attention to positioning the fire away from items that may move as a result of wind and drafts. For example trees/branches/paper and the like.

The base of the burner within the model must never come into direct contact with flammable materials.

Side clearances to fixed and stable furniture items that are not susceptible to movement (e.g lounges or patio furniture) must remain a minimum of 600mm [23.6in] away from the flame at all times.


Overhead clearances to items that are susceptible to movement (e.g. Trees) must remain a minimum of 2000mm [78.7in] away from the flame at all times.

Clearances Requirements – Bioethanol Designer Fireplaces 1

Indoor Clearances

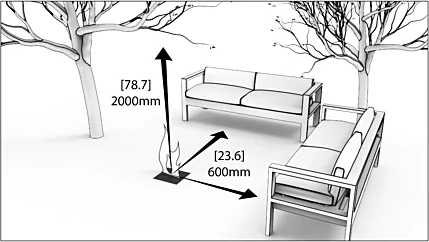

Clearances Requirements – Bioethanol Designer Fireplaces 2

Outdoor Clearances

These products feature 360º height-adjustable articulating feet. Adjust the feet by turning them in either direction until you achieve a perfectly level and stable model before operating.

Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. Always use the Burner Lid included with your model to avoid dust and debris from accumulating inside the burner.

If you live in extreme weather conditions where accumulation of snow is likely, use of the All Seasons Cover is imperative in order to be covered by the warranty.

Locating your appliance

Please do not remove the feet from the appliance, as they play an important role in providing adequate airflow of the undersides.

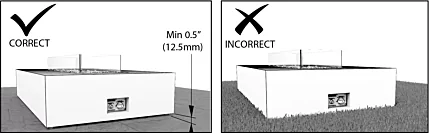

  1. Maintain a minimum air space of 12.5mm [0.5in] between the ground surface and the underside of the appliance sidewalls by adjusting the articulating feet up or down as necessary.
  2. Do not place the appliance over grass, artificial turf, carpet, rock, or any uneven surface.
    ​

DO NOT locate the appliance where it will get excessively wet or submerged in water.

Clearances Requirements – Bioethanol Designer Fireplaces 3

Gin 90 Tables Only: Due to the unique design of the Gin 90 Tables, sitting on or placing excessive amounts of weight on the ends of the table is strongly discouraged and may cause structural damage and/or cracking.

Applies to:

  • Fire Tables (Sidecar 24, Ark 40, Base 40, Base 30, Chaser 38, Mojito 40, Vertigo 40, Vertigo 50, Manhattan 50, Martini 50, Cosmo 50, Wharf 65, Daiquiri 70, Gin 90 Low, Gin 90 Chat, Gin 90 Dining, Gin 90 Bar)
  • Fire Pits (Stix, Stix 8, Pod 30, Pod 40, Nova 600, Nova 850, Mix 600, Mix 850)
